Home / Our Products / Robotic Arms / End Effectors
Mecademic

Integrated End Effectors

Pneumatic Module Electric Gripper

Seamlessly Integrated Tooling

To maximize the plug-and-work capabilities of the Meca500 and MCS500, Mecademic offers a range of custom-designed, miniature end effectors. These tools are designed for zero-hassle integration, requiring no extra cables running down the robot arm or external control software.

Whether you need highly precise parallel electric gripping or custom pneumatic suction, these modules connect directly to the robot's tool flange and are controlled seamlessly through the robot's native programming commands.

Ecosystem Advantages

  • ■ Cable-Free: No bulky cables snagging on the robot arm.
  • ■ Plug & Play: Mounts directly to the tool flange.
  • ■ Native Control: Driven by standard API commands.
  • ■ Precision: Manufactured to match the robot's strict tolerances.
Download Brochure

Available Tooling Modules

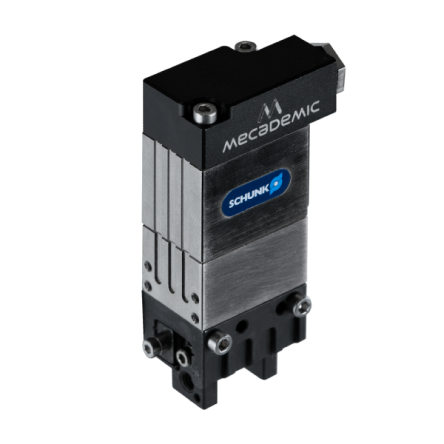

MEGP 25E Short Stroke

MEGP 25E Electric Parallel Gripper

A miniature, parallel electric gripper offering highly precise control over grip force and position. Ideal for delicate micro-assembly and handling small components.

3mm Stroke per Jaw, 40N Max Gripping Force

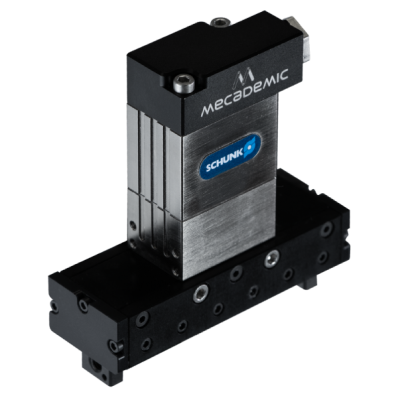

MEGP 25E Long Stroke

MEGP 25LS Electric Parallel Gripper

Features the exact same precision and native integration as the standard gripper, but equipped with a wider opening to accommodate slightly larger parts and payloads.

24mm Stroke per Jaw, 40N Max Gripping Force

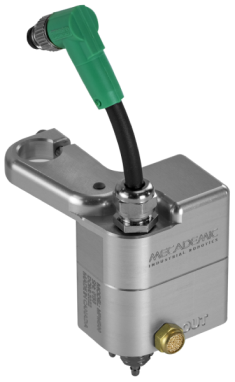

MPM500 Pneumatic Module

MPM500 Pneumatic Module

A specialized module that allows the robot to control custom pneumatic grippers or vacuum suction cups directly, complete with integrated valves and easy routing.

7 bar Operating Pressure, 30 MPL Flow Rate
